High-Performance 4000L 1-Layer Blow Moulding Machine Plastic Container Production

Product Categories
Weifang Huayu Plastic Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

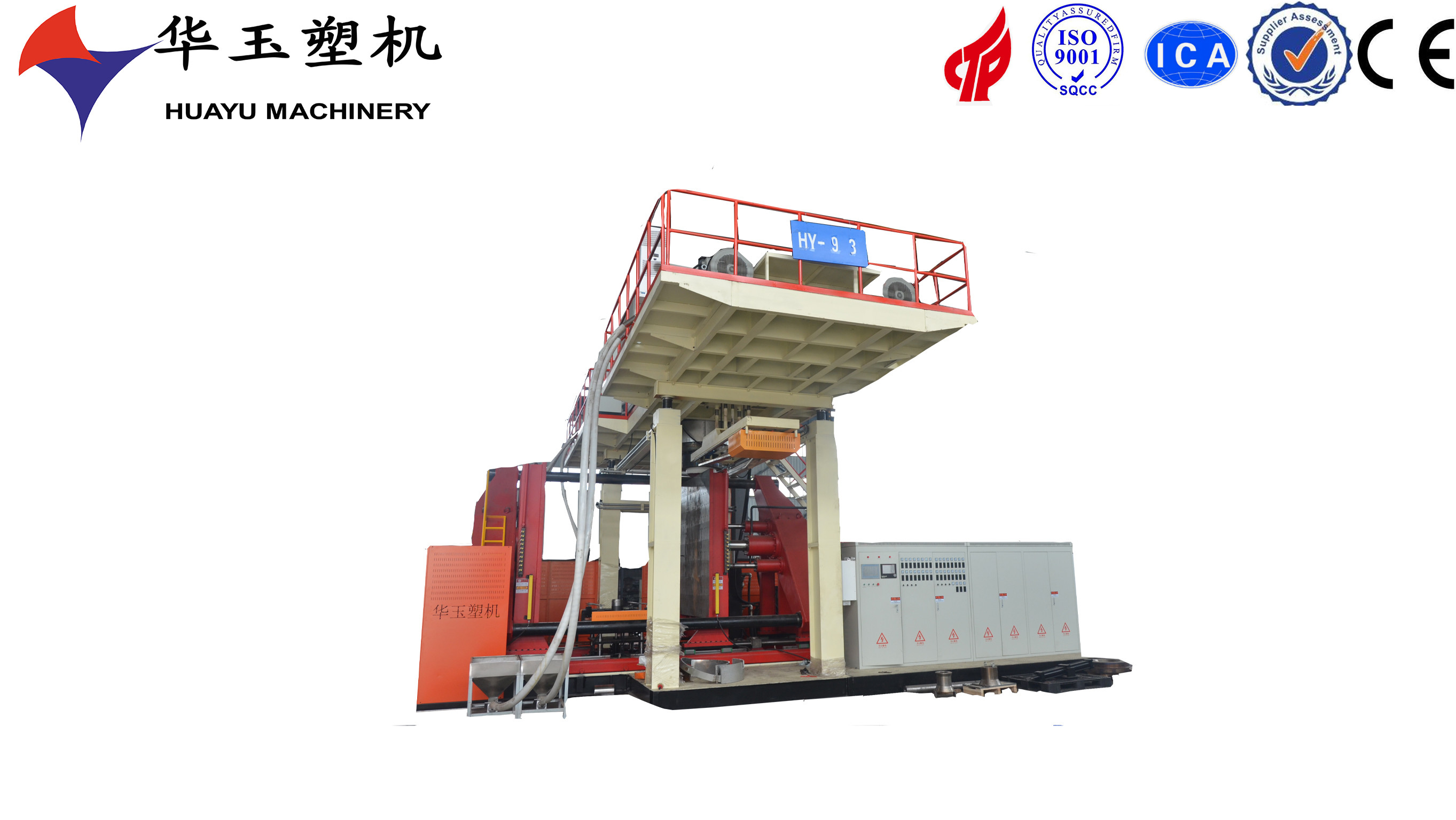

High-Performance 4000L 1-Layer Blow Moulding Machine Plastic Container Production

Brand Name : HUAYU

Model Number : HY4000L-1Layer

Certification : CE,ISO9001

Place of Origin : SHANDONG WEIFANG

MOQ : 1 SET

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 4 sets per month

Delivery Time : 5 months

Packaging Details : The machine will be disassembled into many parts for container transportation.

platen size : 2200*2400*70mm(W*H*T)

clamping cylinder : 350+200*2

clamping cylinder stroke : 2400mm

clamping force : 2500KN

distance between platens : 1400-3800mm

max. mould size : 2000*2300mm(W*H)

stretching stroke : according to products

blow pin up/down stroke : 600mm

air seat stroke : 400mm

maximum air pressure : 0.8Mpa

Contact Now

High-Performance 4000L 1-Layer Blow Moulding Machine Plastic Container Production

High-Performance 4000L 1-Layer Blow Moulding Machine Plastic Container Production

Clamping System
platen size 2200*2400*70mm(W*H*T) smooth running, no noise; the clamping force is big
clamping cylinder 350+200*2
clamping cylinder stroke 2400mm
clamping force 2500KN
distance between platens 1400-3800mm
max. mould size 2000*2300mm(W*H)
blowing and cooling system
stretching stroke according to products
blow pin up/down stroke 600mm
air seat stroke 400mm
maximum air pressure 0.8Mpa
air consumption 2.3m3/min
Cooling method Circulating water
Water pressure 0.3MPa
Cooling water consumption 5m3/h
Hydraulic system
main oil tank capacity 1400L Servo motor, less energy consumption, high efficiency, low noise
main oil pump gear pump185CC
main oil pump motor 557kw
Servo oil tank capacity 200L
Servo oil pump model Plunger pump22

The Hua Yu 4000L 1-layer blow molding machine is a reliable and efficient solution for producing large plastic containers.It features a single-layer design,which ensures uniform wall thickness and high product quality.The machine uses high molecular weight high-density polyethylene resin,resulting in products with high rigidity,wear resistance,and environmental stress crack resistance.These properties make it suitable for various packaging applications in industries such as petroleum,chemical,pharmaceutical,and food.

The machine has a simple structure,is easy to operate,and occupies a small area.It can produce large containers like 4000L water buckets efficiently,with a relatively high production rate.Additionally,the blow molding process used by this machine produces less waste material compared to other methods like injection molding.

This not only reduces material costs but also contributes to environmental protection.Overall,the Hua Yu 4000L 1-layer blow molding machine offers a cost-effective and efficient solution for large container production.
